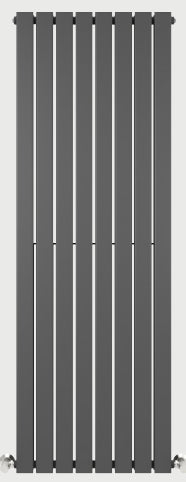

Venice Double Layer Vertical Designer Radiator

Make a statement on your wall and keep your room beautifully warm. The Venice Double Layer Vertical Designer Radiator combines striking flat-tube styling with serious heat output — the double layer design means more warmth from a slimmer footprint, making it ideal for modern bathrooms, hallways, and living spaces.

Key Features

• Double layer design — maximises heat output without increasing wall depth
• Flat tube styling — clean, contemporary look that works as a design feature
• Available in black, white, and anthracite — coordinate with any interior scheme
• Multiple sizes available — to suit a range of spaces and BTU requirements
• Steel construction — durable, efficient heat conductor
• UKCA & Euronorm 442 approved — meets UK and European quality standards
• 10-year manufacturer defects warranty — buy with confidence
• Radiator valves not included — available separately in straight or corner configurations, in chrome, white, black, anthracite, or brushed brass
• Free UK mainland delivery

Size & Output Guide

Installation Guide

⚠️ Safety notice: Gas systems require a Gas Safe registered engineer. This guide covers DIY installation for water-filled radiators on sealed systems only.

Tools required: 2x adjustable spanners, spirit level (600mm min), tape measure, drill with masonry bits, wall plugs and screws, PTFE tape, radiator bleed key.

1. Prepare: Measure space (min 50mm from corners, 100mm from furniture), check wall can support weight, drain system completely.
2. Position brackets: Use 2 brackets up to 1200mm wide, 3 for 1200–1800mm, 4 for over 1800mm. Mark 100–150mm from top, ensure level.
3. Install brackets: Drill 8–10mm holes, insert wall plugs, attach brackets, check level.
4. Fit valves: Wrap PTFE tape around radiator tail threads (5–7 wraps clockwise), hand-tighten valve, then spanner-tighten carefully.
5. Hang radiator & connect pipework: Lift onto brackets, connect valves using two spanners, tighten 1–1.5 turns after hand-tight.
6. Refill & test: Close bleed valve, open radiator valves, refill system slowly, check for leaks, bleed radiator, verify system pressure at 1–1.5 bar cold.

Maintenance: Bleed annually, check for leaks around valves, clean with a damp cloth, add inhibitor every 5 years.

For product or delivery queries, call us on 0203 750 0025.
