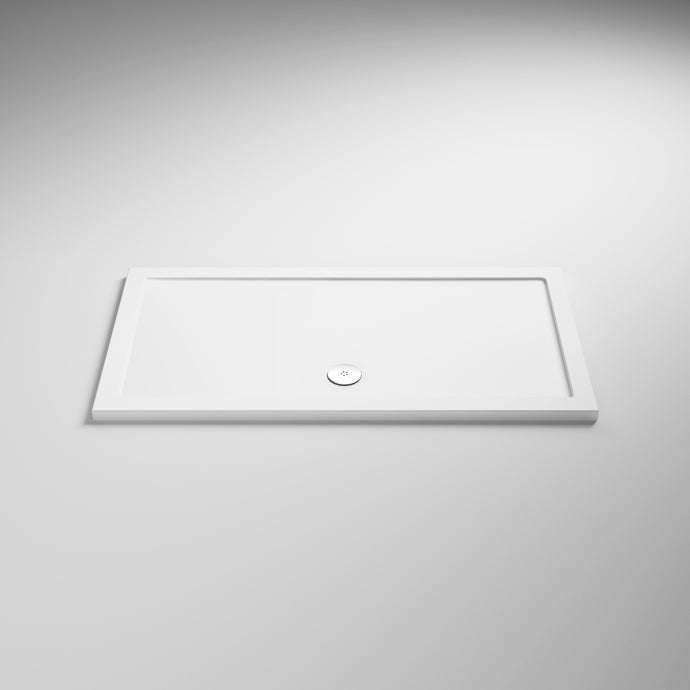

Nuie Rectangular Shower Tray (centre waste hole - 20 sizes available)

Solid underfoot, slim in profile, and available in 20 sizes — the Nuie Rectangular Shower Tray is engineered to make installation straightforward and the finished result look impeccable. Built in Britain using Nuie’s patented Pearlstone Matrix construction, it combines the strength of polyurethane resin and volcanic ash filler with a surprisingly light weight that makes handling and fitting far easier than traditional stone resin trays.

Key Features

• Pearlstone Matrix construction — patented blend of polyurethane resin and volcanic ash filler; strong, durable, and lightweight
• Made in Britain — high-quality domestic manufacturing
• 20 sizes available — to suit a wide range of shower spaces and enclosures

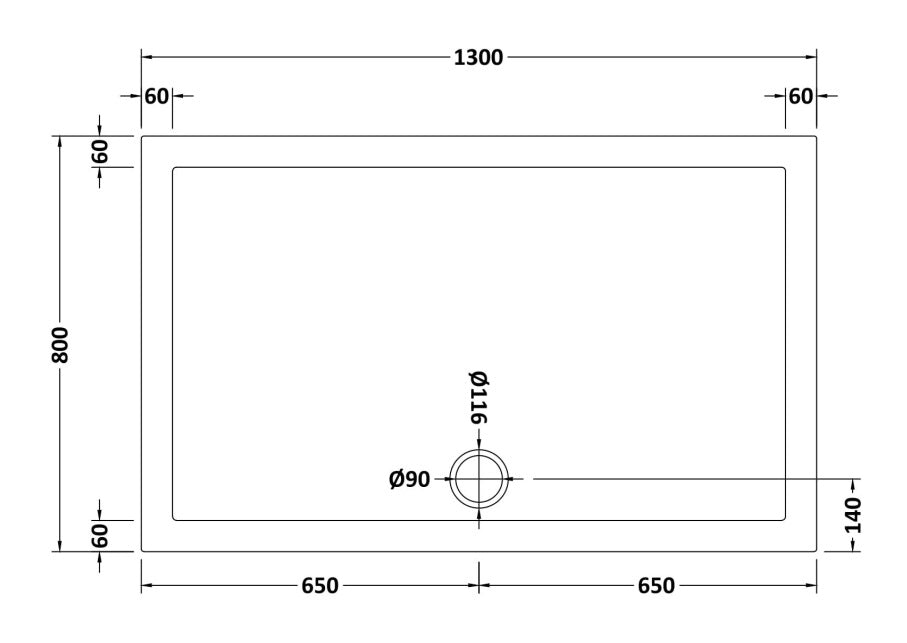

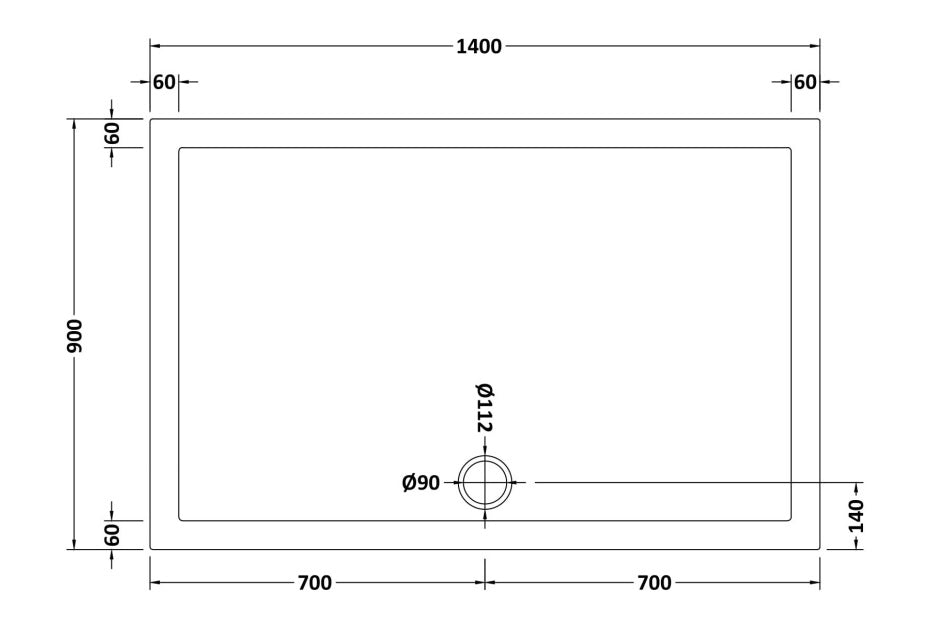

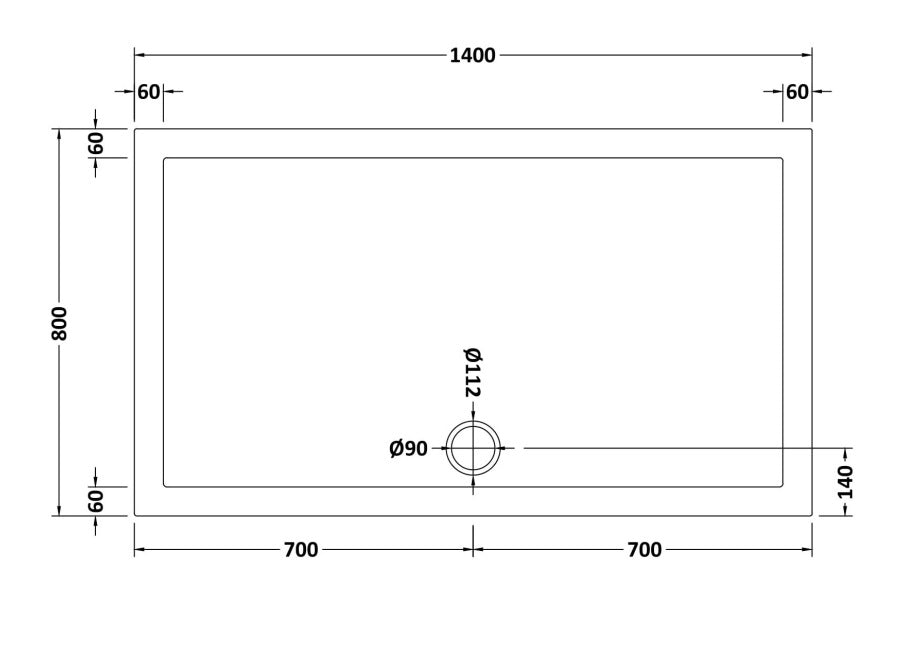

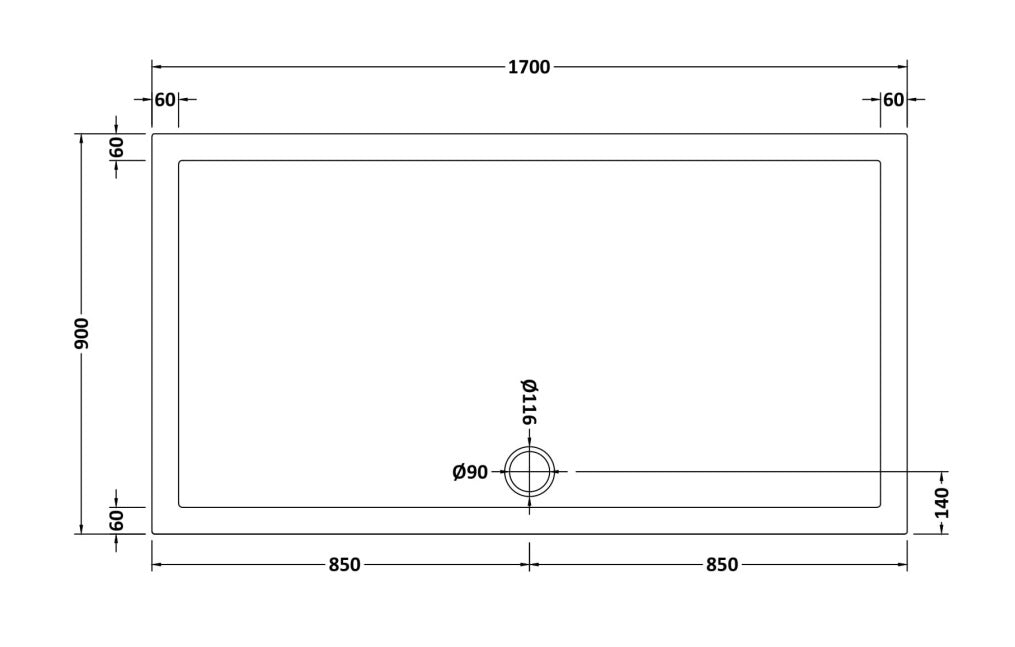

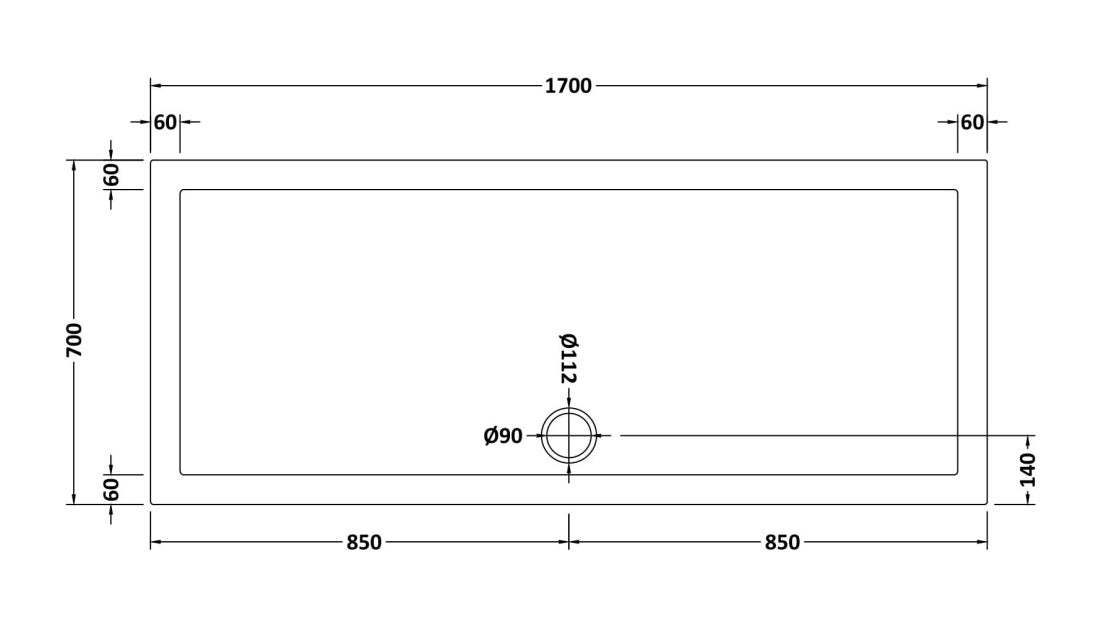

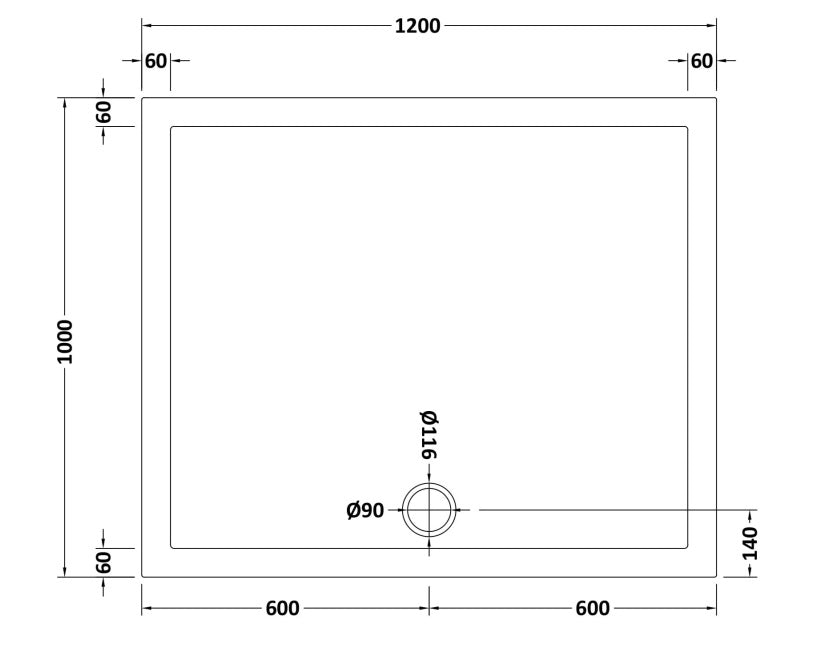

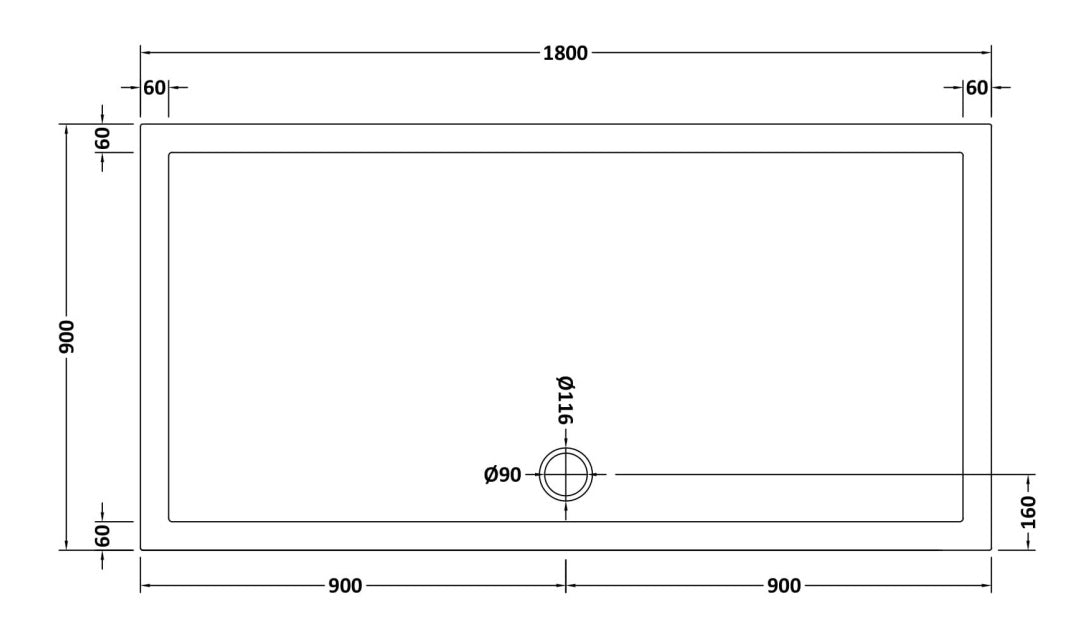

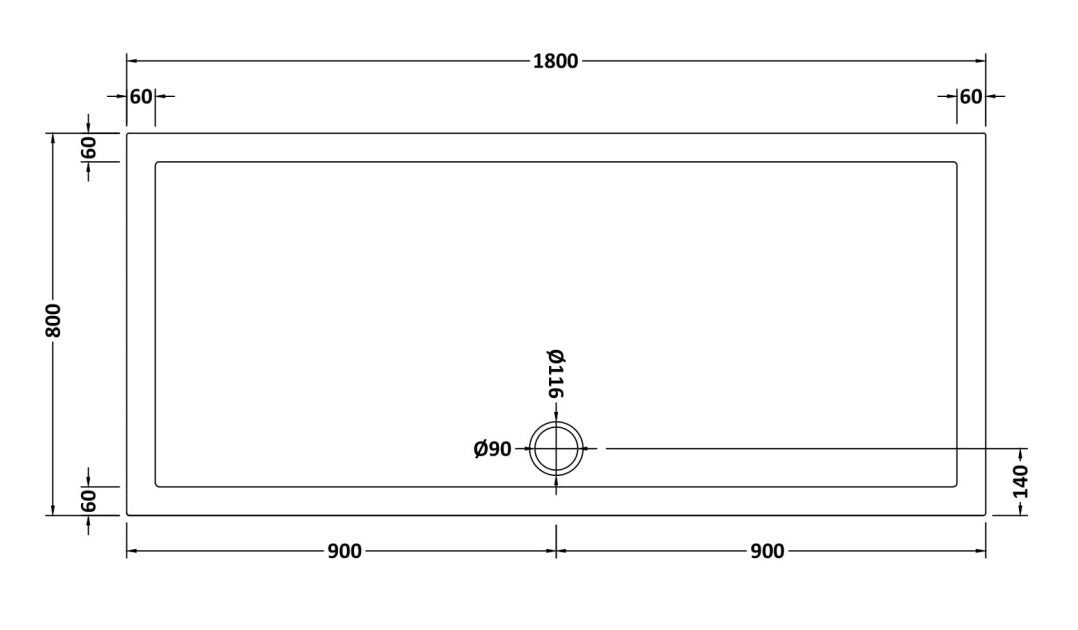

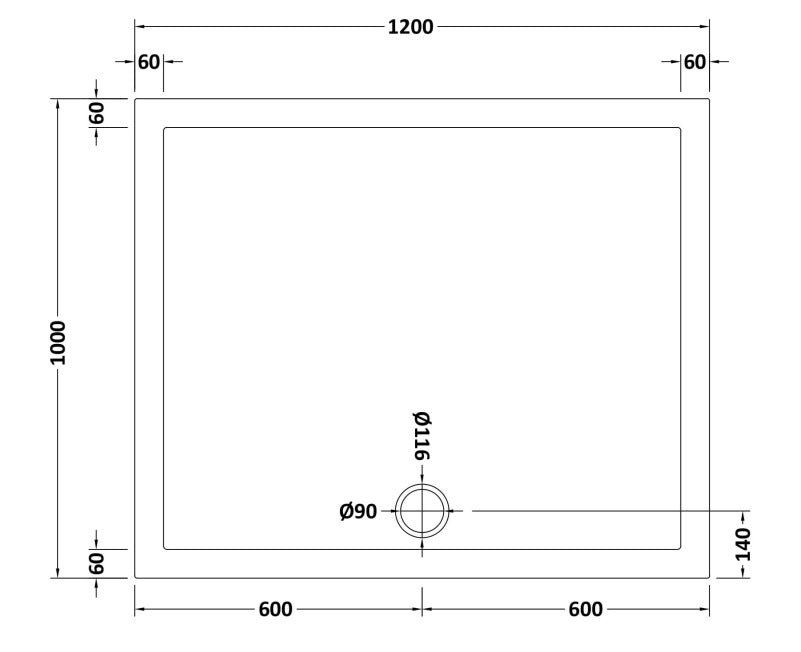

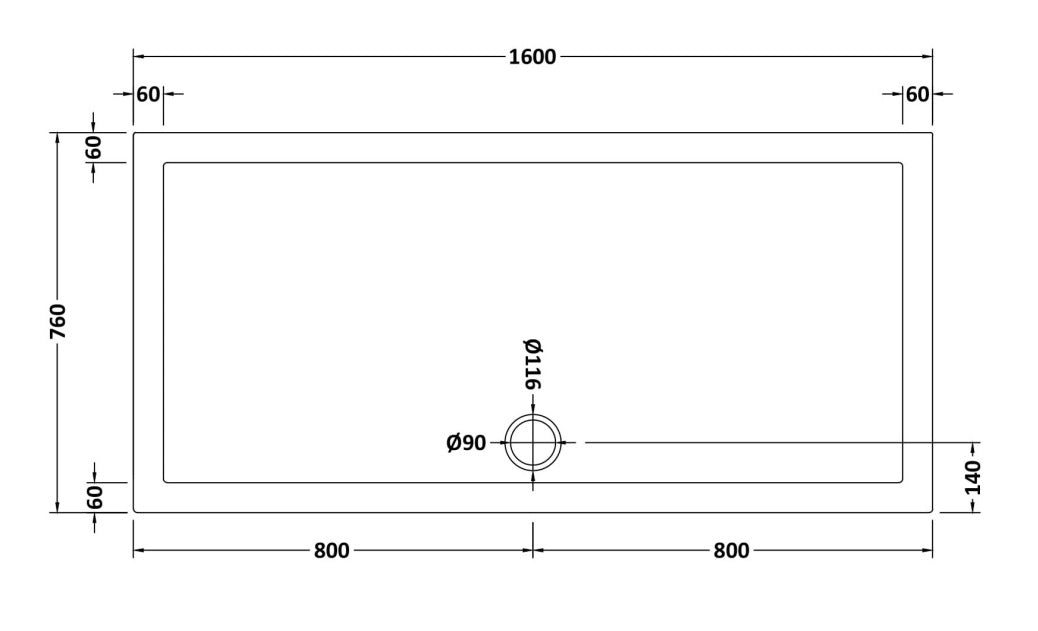

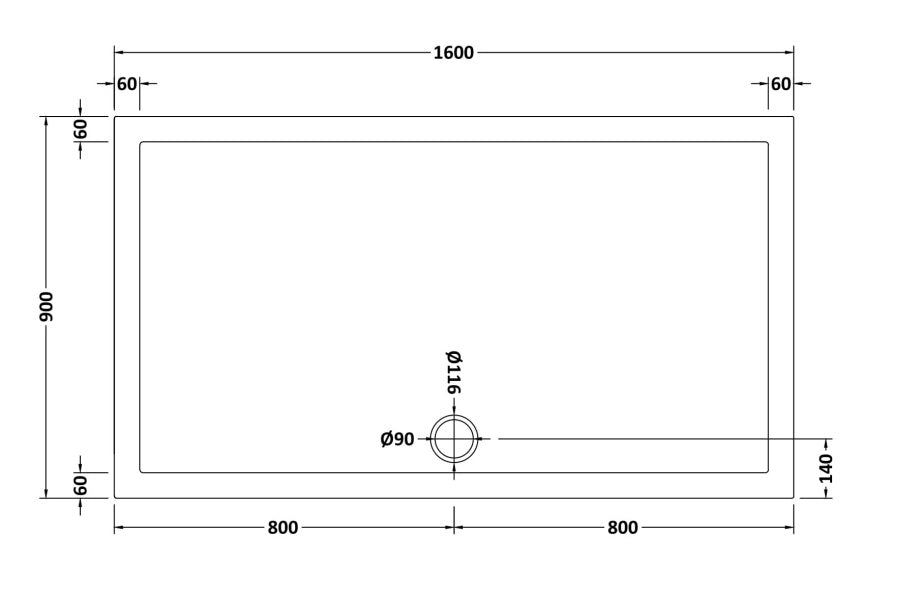

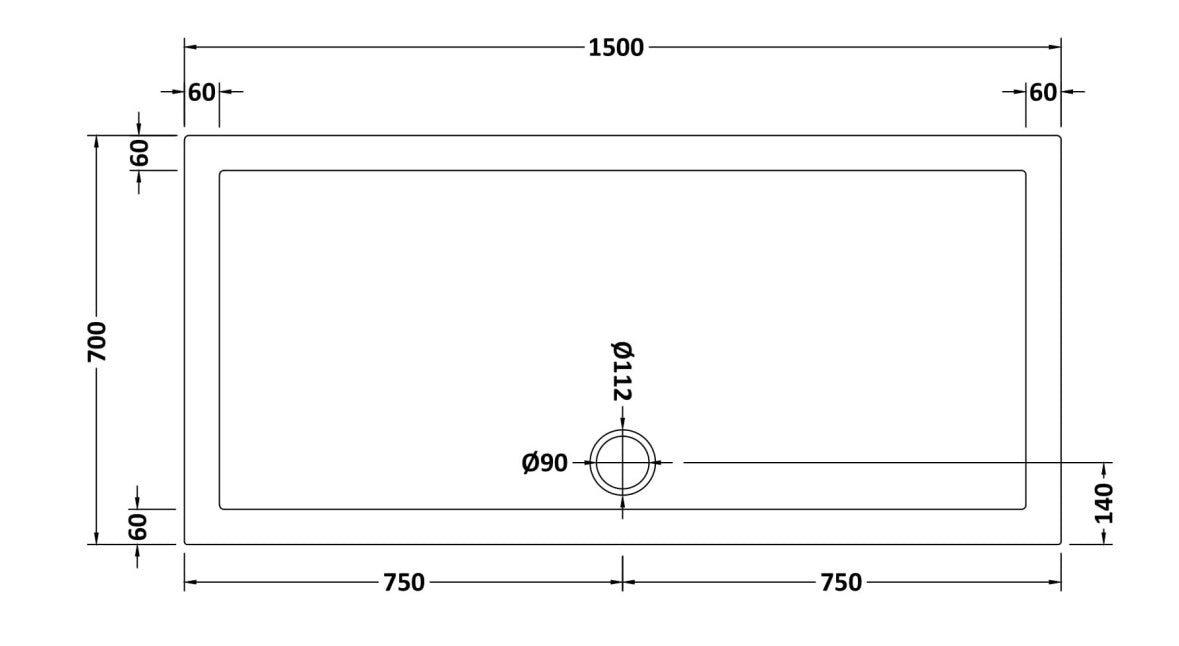

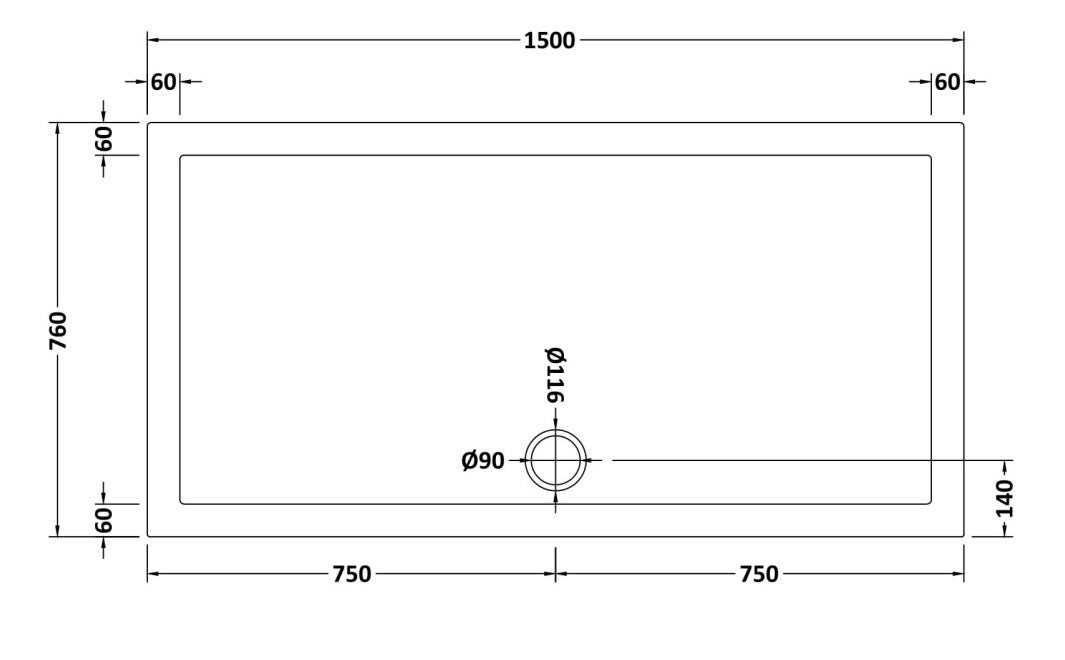

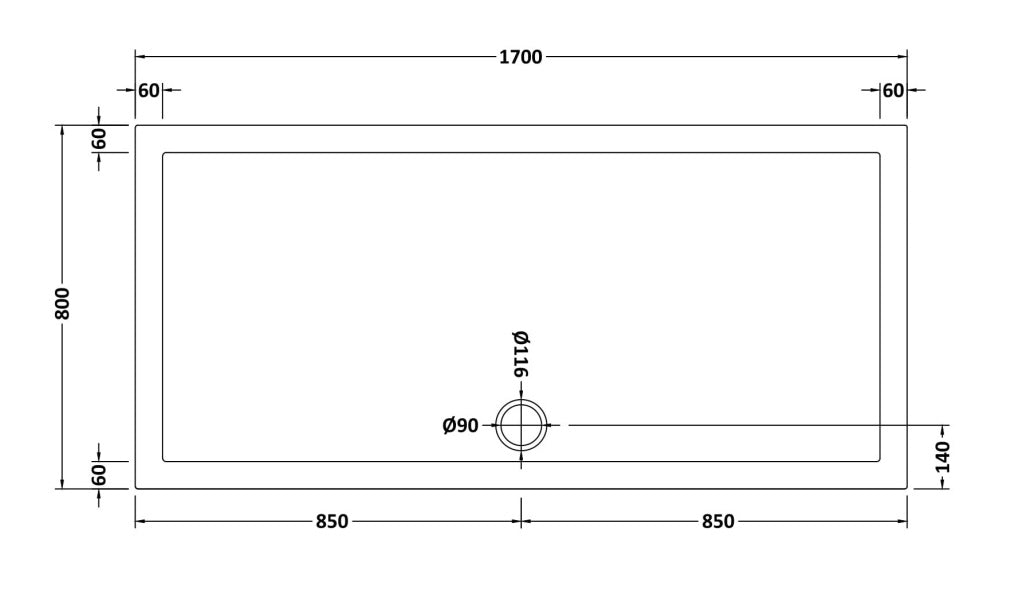

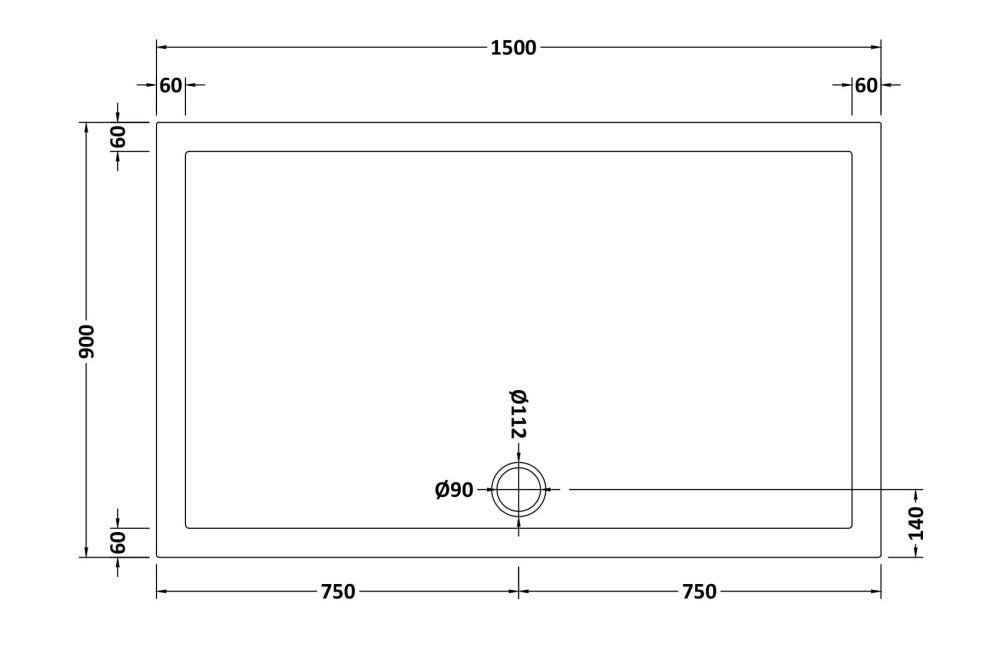

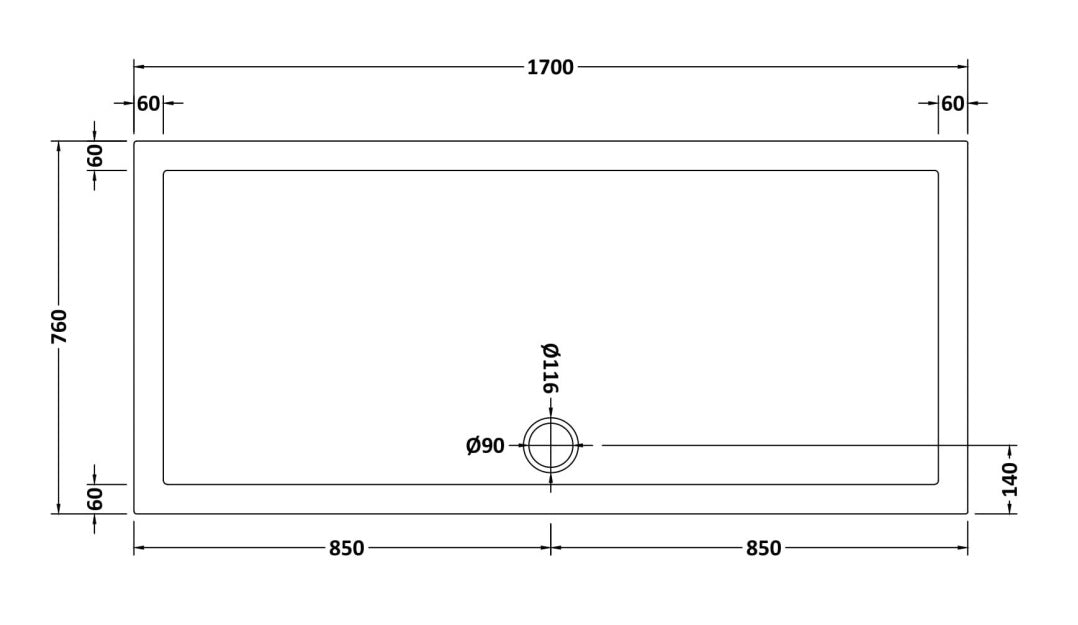

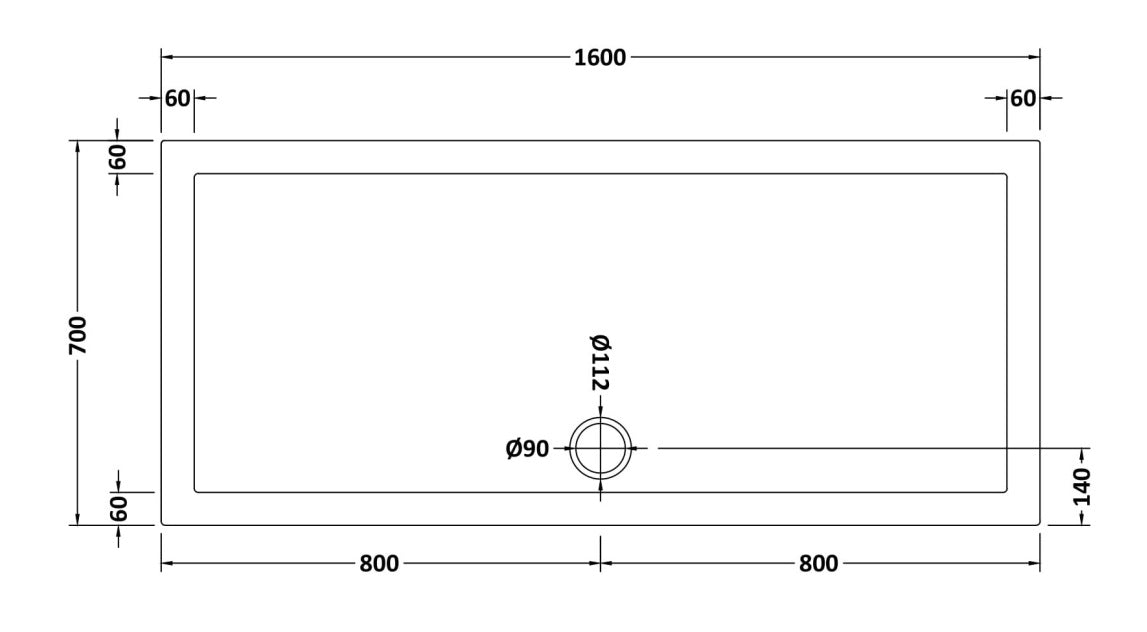

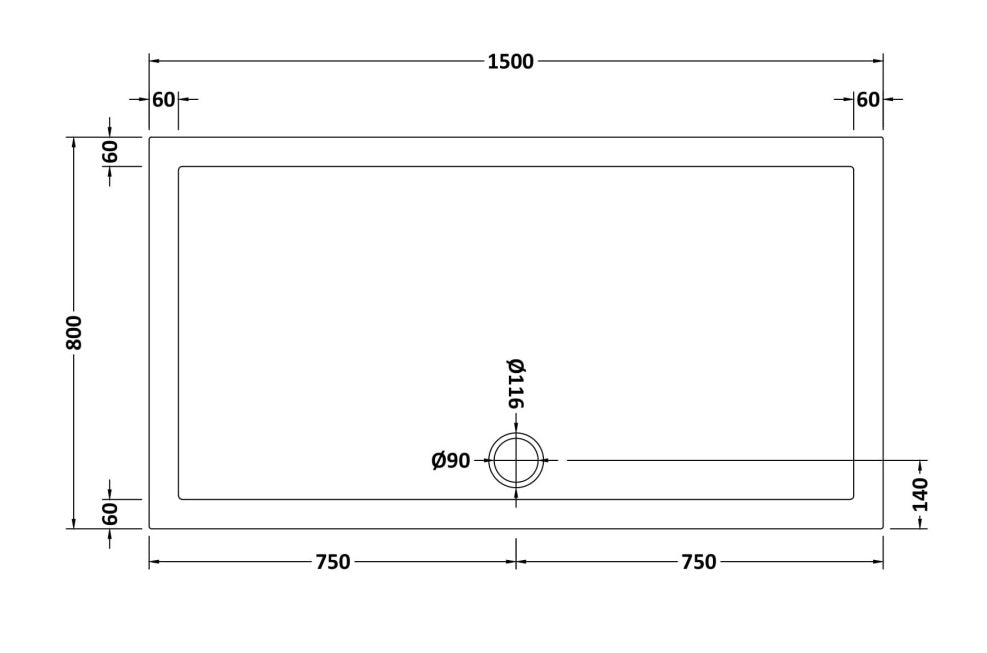

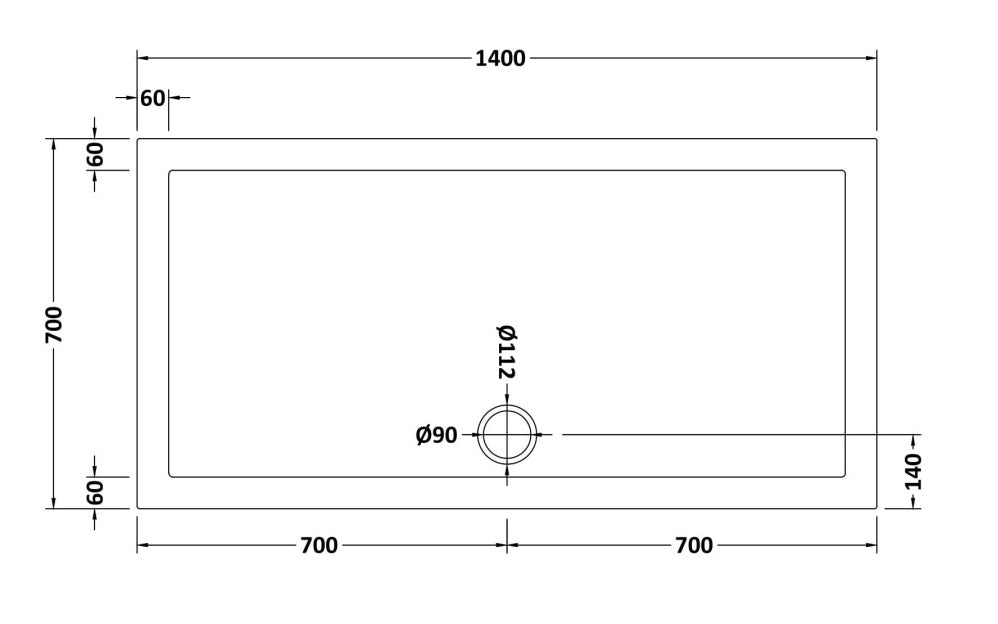

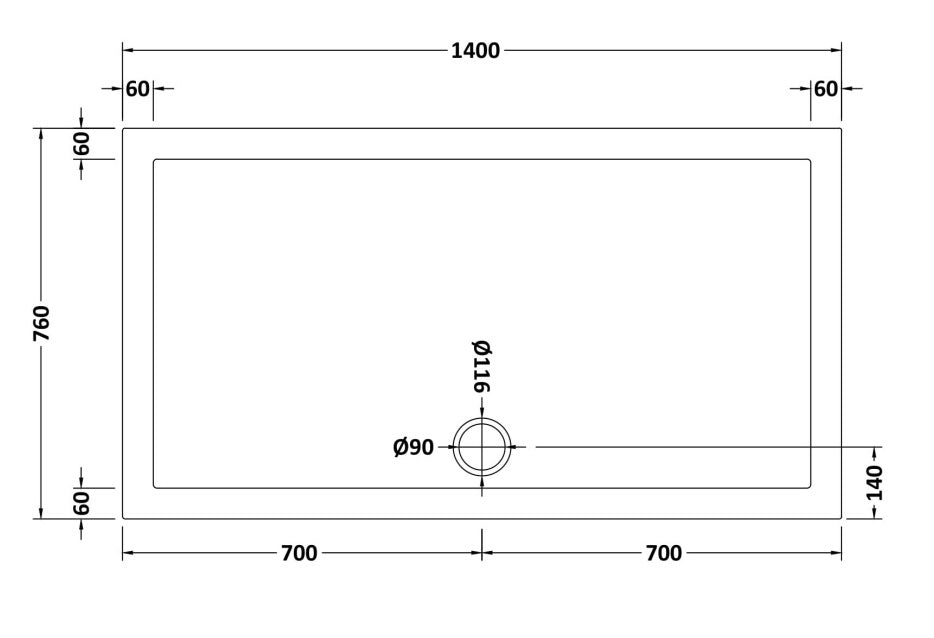

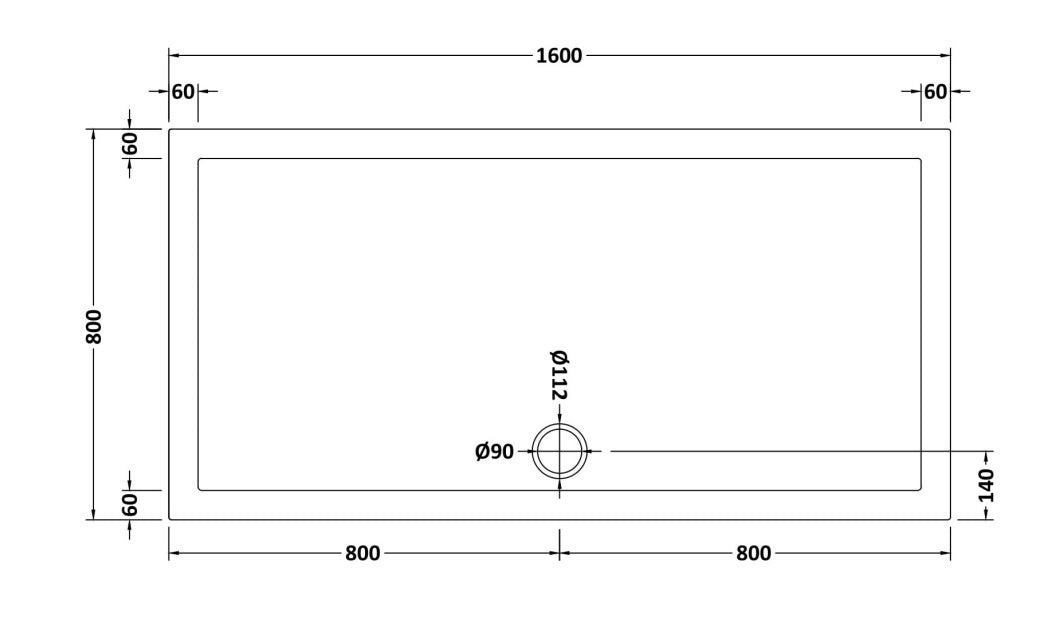

• Centre waste hole — all sizes in this range feature a centre waste position
• 40–45mm low-profile height — slim, contemporary look that sits close to the floor
• Smooth, flat underside — designed for easy installation and levelling
• Compatible with leg set (sold separately) — for added stability and adjustability
• Free UK mainland delivery

Installation Guide

⚠️ Important: Check local building regulations — some areas require professional installation for plumbing work.

Tools required: Spirit level (600mm min), adjustable spanner, screwdriver set, sanitary silicone sealant, plumber’s putty or waste seal, adjustable feet/legs, tape measure.

1. Prepare floor — clean area, check level, mark tray position, ensure waste pipe is accessible at 65–100mm from finished floor.
2. Fit waste trap — attach to tray outlet before positioning; apply plumber’s putty, hand-tighten only.
3. Position & level tray — attach adjustable legs (4–6), position tray, adjust until perfectly level with a slight fall towards waste (1–2mm per metre).
4. Connect waste — connect trap to drainage pipe, test for leaks by pouring water down waste.
5. Seal edges — apply continuous bead of sanitary silicone around all wall edges, smooth with wet finger, allow 24 hours to cure.
6. Final checks — pour water into tray, check drainage and all seals.

Critical tips: Never install on an uneven floor (causes stress cracks). Standard waste diameter is 40mm. Minimum 50mm clearance below tray required.

Maintenance: Check silicone seals annually, clean waste trap every 6 months, use non-abrasive cleaners only.
