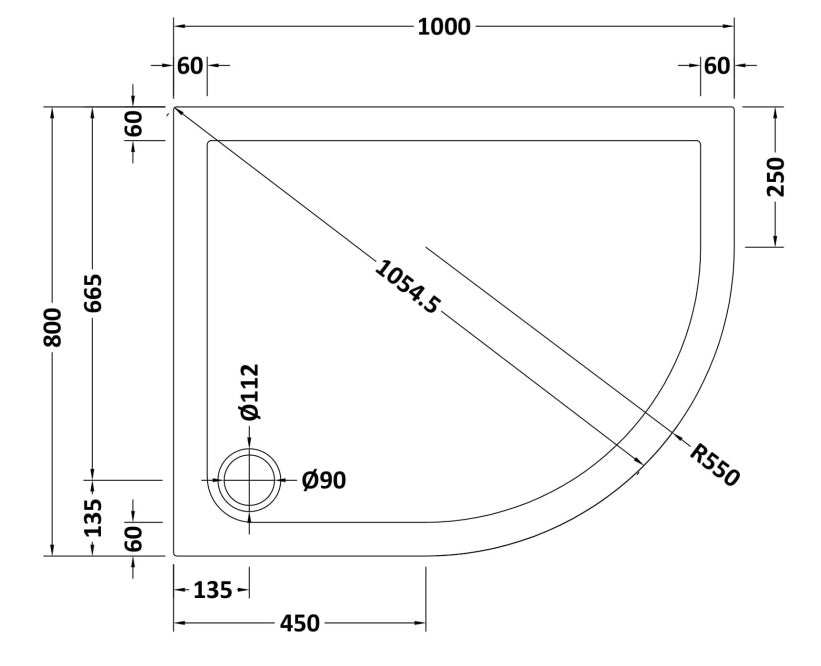

Nuie Offset Quadrant Shower Tray

Introducing our quality Natural Stone Shower Trays. The patented 'Pearlstone Matrix' construction of this Offset Quadrant Shower Tray utilizes a polyurethane resin mixed with filler, including volcanic ash, to achieve a strong and lightweight design. With a flat underside for easier installation and levelling, it is just 40-45mm high, making it a slimline choice. The tray also features screw retention from the leg set (sold separately), allowing for direct screwing into the base for effortless installation. Designed and made in Britain, this shower tray includes free shipping to most of mainland UK.

Browse our range of Offset Quadrant Shower Enclosures to create your perfect space

Installation Guide

⚠️ Important: Check local building regulations - some areas require professional installation for plumbing work.

Tools Required: Spirit level (600mm min), adjustable spanner, screwdriver set, silicone sealant (sanitary grade), plumber's putty or waste seal, adjustable feet/legs, tape measure

Installation Steps:

1. Prepare Floor: Clean installation area, check floor is level, mark tray position, ensure waste pipe is accessible at correct height (65-100mm from finished floor)
2. Fit Waste Trap: Attach waste trap to tray outlet BEFORE positioning tray, apply plumber's putty around waste outlet, hand-tighten (don't over-tighten), ensure trap is accessible for maintenance
3. Position & Level Tray: Attach adjustable legs to underside (4-6 legs), position tray in final location, adjust each leg until perfectly level, check level in all directions, tray should have slight fall towards waste (1-2mm per metre)
4. Connect Waste: Connect waste trap to drainage pipe, ensure all connections are hand-tight, check trap has water seal, test for leaks by pouring water down waste
5. Secure Tray: Mark leg positions on floor, apply silicone around base of legs, check tray stability (no movement when stepped on)
6. Seal Edges: Apply continuous bead of sanitary silicone around all wall edges, smooth with wet finger, ensure complete seal, allow 24 hours to cure
7. Final Checks: Pour water into tray and check drainage, inspect all seals for leaks, verify waste trap is accessible

Critical Tips: Never install on uneven floor (causes stress cracks), use slight fall towards waste (1-2mm) for drainage, standard waste diameter is 40mm, minimum 50mm clearance below tray required

After Installation: Wait 24 hours before use, run water test for 5 minutes, install shower enclosure as required

Maintenance: Check silicone seals annually, clean waste trap every 6 months, use non-abrasive cleaners only
